Lynx 100H HVLP (General Purpose)

The LYNX 100H is an industrial general purpose Low CFM HVLP Air spray gun. The L100H is unique in that it offers a wide range of nozzles that will function with small compressors (2 HP) to spray dyes, spray stains, topcoats and primers. Other Air nozzles are available for breaking up High solid materials. Stainless steel fluid passages, lightweight and rugged construction make the L100H a great gun for onsite or production applications.

Specifications:
Air Inlet - 1/4” NPS (m)
Fluid Inlet - 3/8 NPS (m)
Weight - 20 oz.
CFM is dependant on Air Cap
Available in a Smart Pack

Part Sheet: Lynx 100H (L100H)
Sales Sheet: Lynx 100H (L100H)

---

---

Lynx 200H HVLP (Corrosion Control)

The LYNX 200H HVLP is our heavy duty HVLP air spray gun excellent for spraying in harsh environments. This gun has a air adjusting valve, self-adjusting needle and air valve packing. LYNX guns come standard with stainless steel fluid passages. This gun complies with all environmental regulations for HVLP.

Specifications:
Air Inlet - 1/4” NPS (m)
Fluid Inlet - 3/8 NPS (m)
Weight - 20 oz.
CFM is dependant on Air Cap

Part Sheet: Lynx 200H (L200H)
Sales Sheet: Lynx 200H (L200H)

---

---

Lynx 300H HVLP (Fine Finish)

The LYNX 300H is a fine finish HVLP air spray gun for achieving the ultimate in fine atomization. Designed for production use, the L300 HVLP is perfect for wood, automotive or any fine finish application. This gun offers the user a self adjusting needle, packing, air adjusting valve, lightweight and rugged construction. The LYNX guns come standard with all stainless steel fluid passages and incorporate our 12-point plenum design. This patented design delivers smaller, more uniform material particles providing for an even, flat finish. This gun complies with all environmental regulations for HVLP.

Specifications:
Air Inlet - 1/4” NPS (m)
Fluid Inlet - 3/8 NPS (m)
Weight - 20 oz.
Requires 13.5 CFM @ 45 PSI

Part Sheet: Lynx 300H (L300H)
Sales Sheet: Lynx 300H (L300H)

---

---

C.A.T. SLP HVLP (Fine Finish - Stainless Low Pressure)

The C.A.T. SLP is a fine finish spray gun designed for automotive and wood finishing. Features include stainless steel fluid passages, and superfine atomization achieved with the patented 12-point atomization. The smoke-like atomization allows excellent blending and gloss. The CAT SLP requires only 29 psi inlet pressure to produce 10 psi at the nozzle. This gun complies with all environmental regulations for HVLP. The C.A.T. SLP specializes in breaking up NGR stains and other hard to break up materials.

Specifications:
Air Inlet - 1/4” NPS (m)
Fluid Inlet - 3/8 NPS (m)
Weight - 20 oz.
Requires 13.5 CFM @ 29 PSI
Available in a CAT Pack

Part Sheet: CAT SLP (CSLP)
Sales Sheet: CAT SLP (CSLP)

---

---

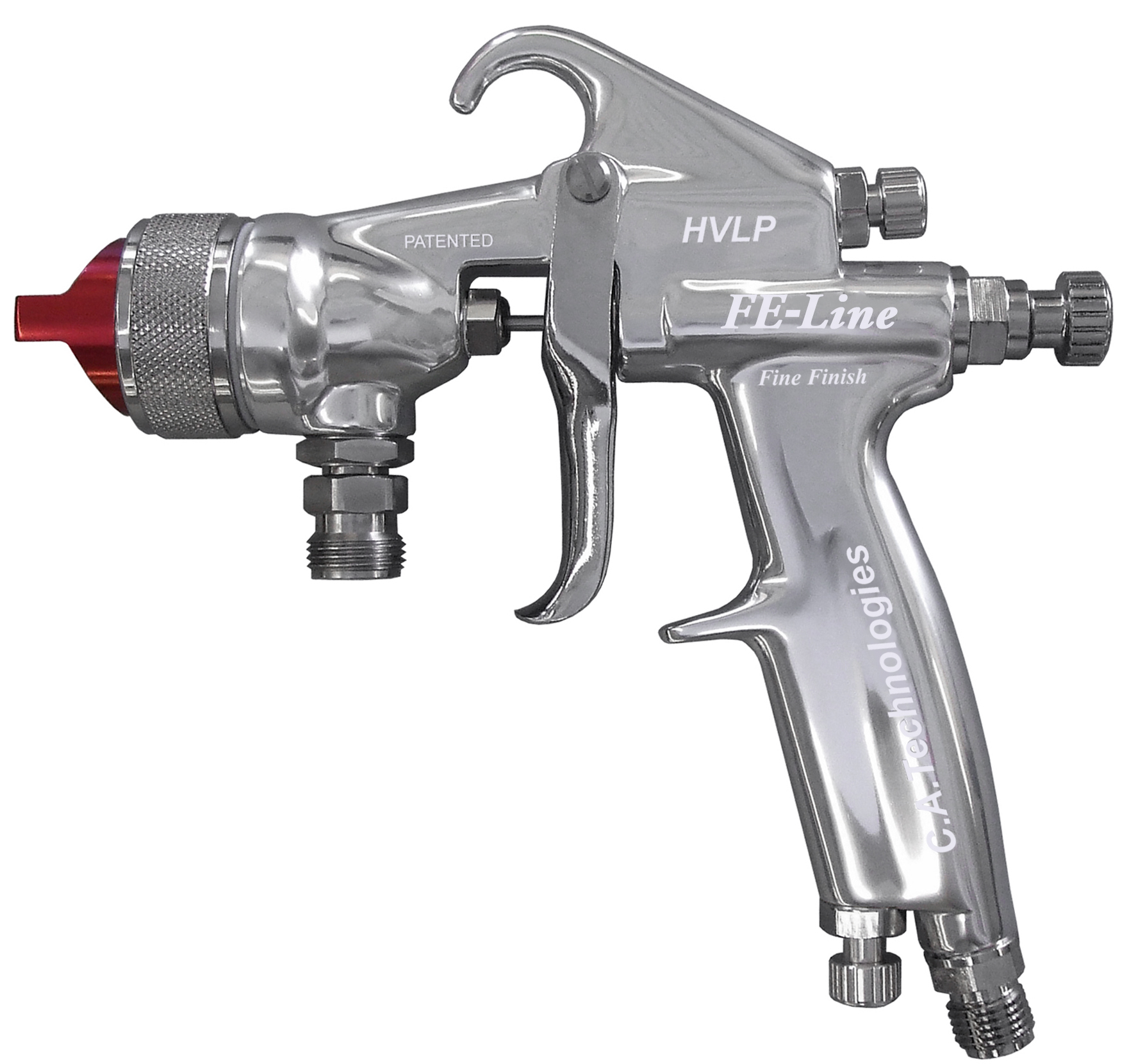

FE-Line Fine Finish

FE-Line Fine Finish is designed around CAT SLP technology. The FE-Line Fine Finish HVLP has been designed for spray stains, toning and consistent color matching applications.The 12 point air diffusion design significantly improves pattern coverage uniformity, process capability and color consistency. The FE-Line’s lightweight ergonomic design also reduces fatigue and increases mobility.

Specifications:
Air Inlet - 1/4” NPS (m)
Fluid Inlet - 3/8 NPS (m)
Weight - 15 oz.
Requires 13.5 CFM @ 29 PSI
Available in a CAT Pack

Part Sheet: FE-Line Fine Finish (FE-FF)
Sales Sheet: FE-Line Fine Finish (FE-FF)

---

---

FE-Line LCFM (Low CFM)

The new FE-Line LCFM HVLP gun is our low CFM lightweight ergonomic spray gun.The FE-Line LCFM’s standard setup will be 1.3 x 1090.This setup is designed for use with a low air consumption compressor. The 1090 air cap only uses 6cfm, which enables the gun to be operated with a 2hp compressor. The FE-Line’s lightweight ergonomic design also reduces fatigue and increases mobility.

Specifications:
Air Inlet - 1/4” NPS (m)
Fluid Inlet - 3/8 NPS (m)
Weight - 15 oz.
CFM is dependant on Air Cap (21-1090 Low CFM air cap requires 6 CFM @ 15 PSI)
Available in a CAT Pack

Part Sheet: FE-Line Low CFM (FE-LCFM)
Sales Sheet: FE-Line Low CFM (FE-LCFM)

---

---

Panther 100H HVLP (General Purpose) - Teflon Hard Coated

The PANTHER 100H is an industrial general purpose Low CFM HVLP Air spray gun. The P100H is unique in that it offers a wide range of nozzles that will function with small compressors (2 HP) to spray dyes, spray stains, topcoats and primers. Other Air nozzles are available for breaking up High solid materials. Stainless steel fluid passages, and its lightweight rugged construction and make the P100H a great gun for onsite or production applications.

Specifications:
Air Inlet - 1/4” NPS (m)
Fluid Inlet - 3/8 NPS (m)
Weight - 20 oz.
Teflon hard coated body
CFM is dependant on Air Cap

Part Sheet: Panther 100H (P100H)
Sales Sheet: Panther 100H (P100H)

---

---

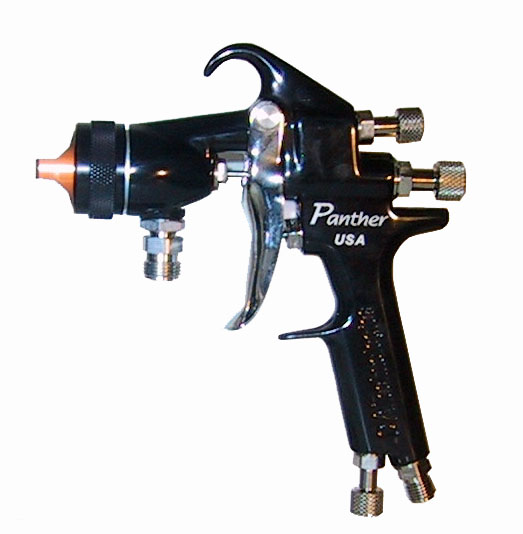

Panther 200H HVLP (Corrosion Control) - Teflon Hard Coated

The PANTHER 200H HVLP is our heavy duty HVLP air spray gun excellent for spraying in harsh environments. The P200H is perfect for zinc rich, glues, CARC or any coating that makes clean-up difficult. This gun has a heavy-duty needle spring, air adjusting valve, self-adjusting needle and air valve packing. PANTHER guns come standard with stainless steel fluid passages. This gun complies with all environmental regulations for HVLP.

Specifications:
Air Inlet - 1/4” NPS (m)
Fluid Inlet - 3/8 NPS (m)
Weight - 20 oz.
Teflon hard coated body
CFM is dependant on Air Cap

Part Sheet: Panther 200H (P200H)
Sales Sheet: Panther 200H (P200H)

---

---

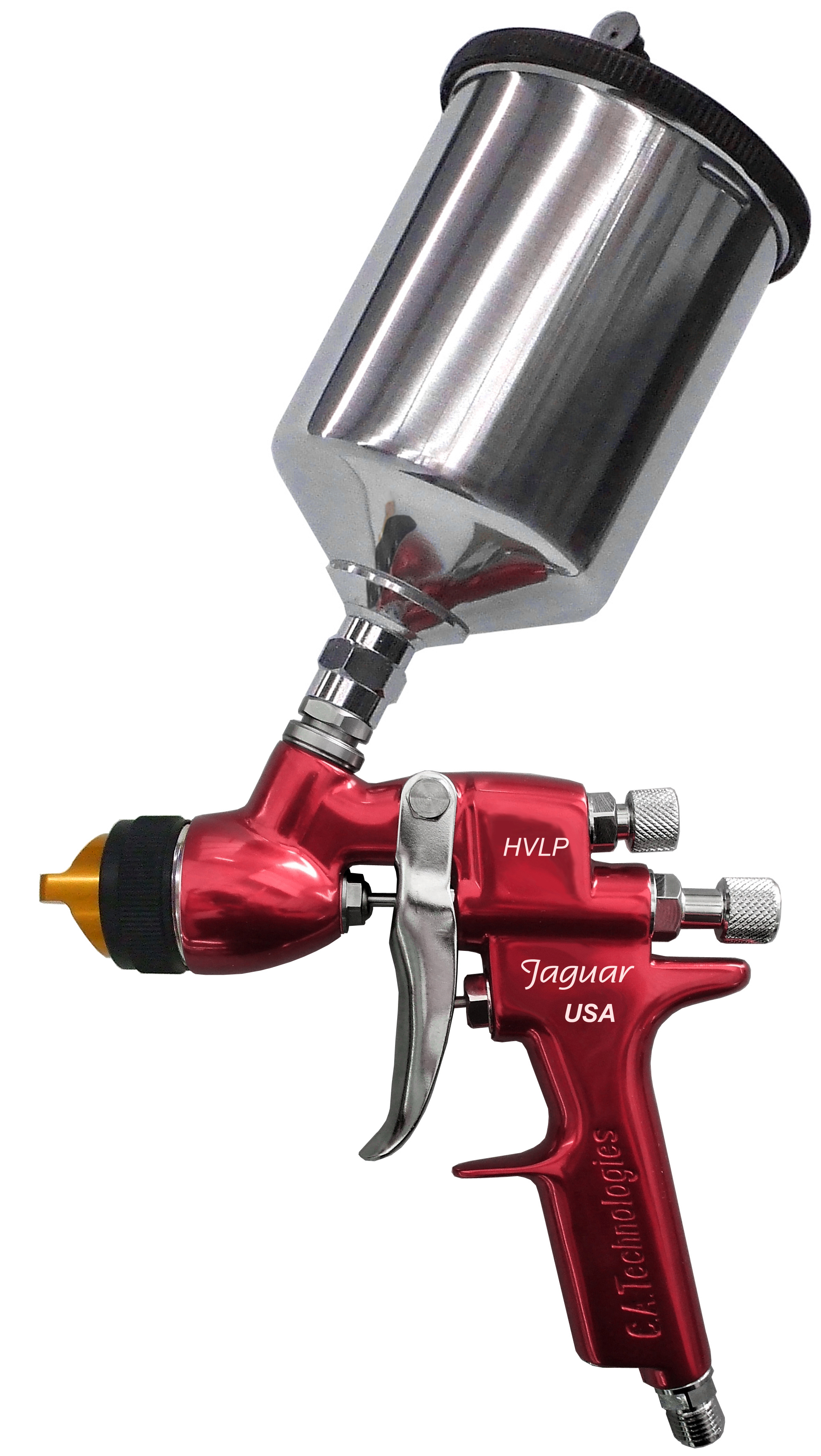

Jaguar 100H HVLP (Gravity, General Purpose / Low CFM)

The J100H is a general purpose gravity feed gun intended for automotive and wood finishing. Features include all stainless steel fluid passages, low volume nozzles for small HP compressor use and self-adjusting needle packing. Comes standard with 750cc aluminum gravity cup. This gun complies with all HVLP environmental regulations.

Specifications:
Air Inlet - 1/4” NPS (m)
Fluid Inlet - 16mm x 1.5mm (m)
Weight - 20 oz.
CFM is dependant on Air Cap (21-1090 Low CFM air cap requires 6 CFM @ 15 PSI)
Available in a CAT Pack or E-Pack

Part Sheet: Jaguar 100H (J100H)
Sales Sheet: Jaguar 100H (J100H)

---

---

Jaguar 300 HVLP (Fine Finish)

The Jaguar 300H is a fine finish HVLP air spray gun for achieving the ultimate in fine atomization. Designed for production use, the J300 HVLP is perfect for wood, automotive or any fine finish application. This gun offers the user a self adjusting needle, packing, air adjusting valve, lightweight and rugged construction. The Jaguar guns come standard with all stainless steel fluid passages and incorporate our 12-point plenum design. This patented design delivers smaller, more uniform material particles providing for an even, flat finish. This gun complies with all environmental regulations for HVLP.

Specifications:
Air Inlet - 1/4” NPS (m)
Fluid Inlet - 16mm x 1.5mm (m)
Weight - 20 oz.
Requires 13.5 CFM @ 45 PSI

Part Sheet: Jaguar 300H (J300H)
Sales Sheet: Jaguar 300H (J300H)

---

---

Jaguar SLP HVLP (Fine Finish - Stainless Low Pressure)

The Jaguar SLP is a fine finish gravity feed gun for automotive and wood finishing. Features include stainless steel fluid passages & superfine atomization achieved with the patented 12-point atomization. Smoke like atomization allows for producing excellent blending and gloss. The JSLP requires only 29 psi inlet pressure to achieve 10 psi at the nozzle. This gun complies with all environmental regulations for HVLP.

Specifications:
Air Inlet - 1/4” NPS (m)
Fluid Inlet - 16mm x 1.5mm (m)
Weight - 20 oz.
Requires 13.5 CFM @ 29 PSI
Available in a CAT Pack or E-Pack

Part Sheet: Jaguar SLP (JSLP)
Sales Sheet: Jaguar SLP (JSLP)

---

---

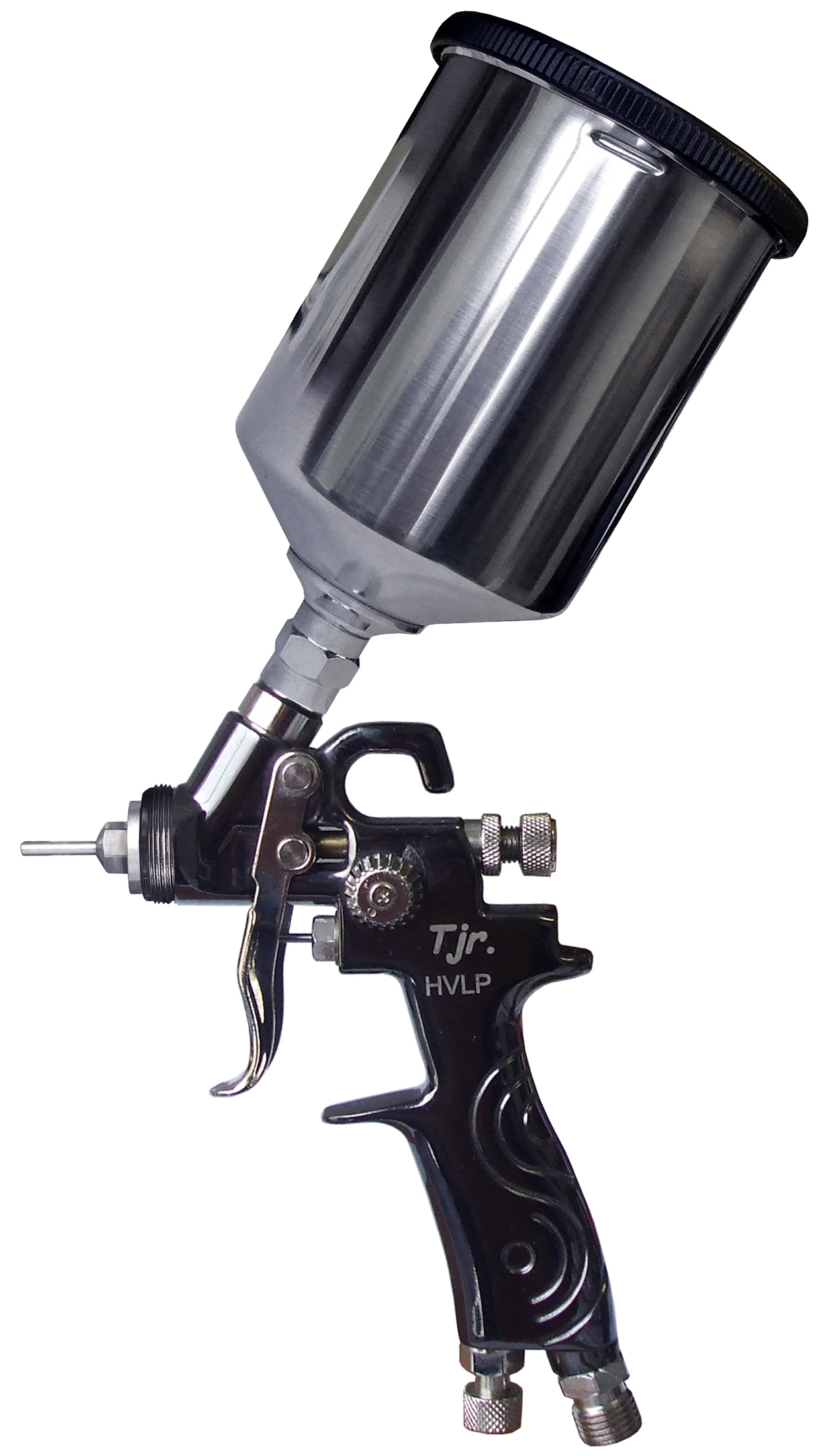

TJR. HVLP (Gravity) | TJR. DELUXE | TJR. GLAZE - Replaced by T2

The Techline TJR is an economically priced gravity feed mini gun for use with a range of coatings from top coats to stains. This is great for all your touch-up needs. Comes standard with with a 250cc aluminum and 250cc plastic cup. Also included are 2 extra nozzle kits. This gun complies with all environmental regulations for HVLP.

The Deluxe TJR. kit from CAT is intended to give finishers the best of both worlds by including the regular air cap for all your touch up needs and the special round air cap specifically designed for shading and other specialty applications. Also included in the kit are the 1.0 and 1.2 needle and nozzle setups.

The Glaze TJR. kit from CAT is intended to give finishers the option of being able to spray their glaze on the surface-great for shading or lay a bead of material with precision. The New Glaze nozzle works without air and simply allows you to lay the smallest bead of material on your surface great for placing the glaze in raised door panels or special projects.

Specifications:
Air Inlet - 1/4” NPS (m)
Fluid Inlet - 16mm x 1.0mm (m)
Weight - 15 oz.
Requires 4 CFM

Part Sheet: Techline JR (TJR)
Sales Sheet: Techline JR (TJR)

---

---

T2 and T2 Glaze (Gravity)

The T2 Glaze kit from CAT is intended to give finishers the option of being able to spray their glaze on the surface-great for shading or lay a bead of material with precision. The glaze nozzle works without air and simply allows you to lay the smallest bead of material on your surface great for placing the glaze in raised door panels or special projects.

The T2 is a gravity feed mini gun for use with a range of coatings from top coats to stains. This is great for all your touch-up needs. Comes standard with with a 150cc aluminum and 125cc plastic cup. Also included are 2 extra nozzle kits. This gun complies with all environmental regulations for HVLP.

Specifications:
Air Inlet - 1/4” NPS (m)
Fluid Inlet - 16mm x 1.0mm (m)
Weight - 15 oz.
Requires 4 CFM

Part Sheet: T2
Sales Sheet: T2 Glaze
Sales Sheet: T2

---

---

Techline T3 HVLP (Gravity)

The Techline T3 is an economically priced gravity feed gun for use with a range of coatings from primers to top coats to stains. The T3 combines C.A.T. fine finish nozzles on a low-cost gun body so you can achieve the best of both worlds -- economy and fine finish. Features include air adjusting valve and 750cc plastic cup. This gun complies with all environmental regulations for HVLP.

Specifications:
Air Inlet - 1/4” NPS (m)
Fluid Inlet - 16mm x 1.5mm (m)
Weight - 20 oz.
Requires 13.5 CFM @ 45 PSI

Part Sheet: Techline T3 (T3)
Sales Sheet: Techline T3 (T3)

---

---

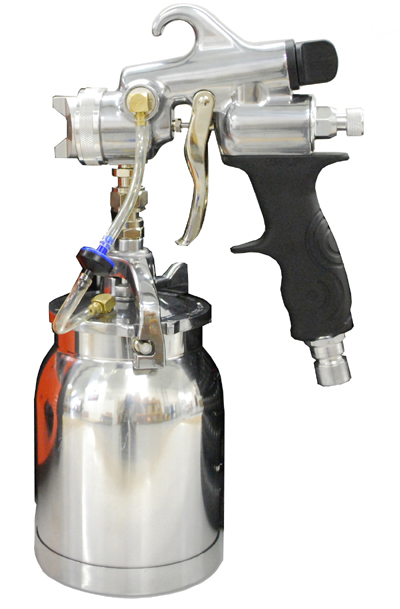

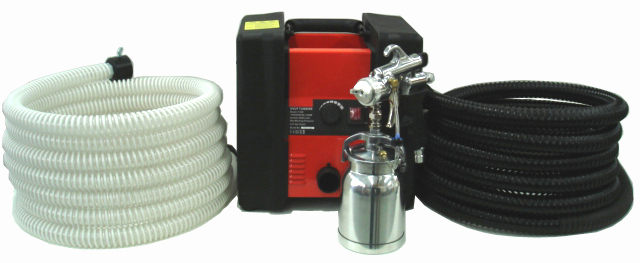

Turbine Spray Gun & Cup (60-TRBN-2)

Our HVLP Turbine gun is a non-bleeder type gun that gives excellent atomization for controlled results. We have a full range of needle nozzle combinations from 0.5mm to 2.5mm.

Specifications:
Air Inlet - Turbine quick release
Fluid Inlet - 3/8 NPS (m)
Weight - 20 oz.

Part Sheet: 60-TRBN-2
Sales Sheet: 60-TRBN-2

---

---
