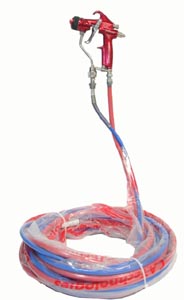

H2O-CPR (H2O - CAT Pressure Reduced)

The H2O CPR comes standard with Stainless Steel fluid passages, CAT's patented 12 point atomization, HVLP and pressure reduced air caps and comes with 3 needle and nozzle sizes, the H2O is also available with the 3M PPS or aluminum pressure cup systems.

Specifications:
Air Inlet - 1/4” NPS (m)
Fluid Inlet - 3/8 NPS (m)
Weight - 20 oz.
23-1301 Requires 13.5 CFM @ 29 PSI
23-2101 Requires 11.0 CFM @ 29 PSI
Only available in a CAT Pack

Part Sheet: H2O-CPR
Sales Sheet: Waterborne Coating Solutions

H2O-CPR-G (H2O Gravity - CAT Pressure Reduced)

The H2O CPR Gravity comes standard with Stainless Steel fluid passages, CAT's patented 12 point atomization, HVLP and pressure reduced air caps and comes with 3 needle and nozzle sizes, the H2O is also available with the 3M PPS or aluminum gravity cup systems.

Specifications:
Air Inlet - 1/4” NPS (m)
Fluid Inlet - 16mm x 1.5mm (m)
Weight - 20 oz.
23-1301 Requires 13.5 CFM @ 29 PSI
23-2101 Requires 11.0 CFM @ 29 PSI
Only available in a CAT Pack

Part Sheet: H2O-CPR-G
Sales Sheet: Waterborne Coating Solutions

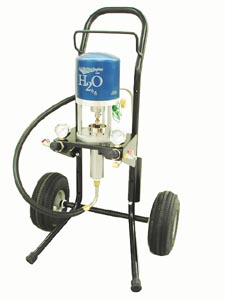

H2O Air Assist Airless

CAT is pleased to announce that our new waterborne equipment is available. We have labeled the equipment for this application so customers will not confuse the solvent based and water based units in their shops. The H2O AAA units help reduce the sheering of materials, eliminating many of the problems associated with spraying waterborne coatings.

Bobcat Outfits Designations:
Cart Mount: H2O-OB14-C5-12-XXX-F
Wall Mount: H2O-OB14-W5-12-XXX-F
Note: replace xxx with preferred tip size
Requires 6 CFM


Cougar Outfits Designations:
Cart Mount: H2O-OC14-C5-12-XXX-F
Wall Mount: H2O-OC14-W5-12-XXX-F
Note: replace xxx with preferred tip size
Requires 6 CFM

H20 AAA oufits will include the following:
Pre-atomizing fine finish opti-tip(36-XXX-F), 100 mesh gun handle filter, 1/2" material pick-up tube, 3/16" fluid hose and larger fluid passages.

Part Sheet: AAA H2O Cougar Peak 14:1 Outfit
Part Sheet: AAA H2O Bobcat Peak 14:1 Outfit
Part Sheet: AAA H2O Cougar 14:1 Outfit
Part Sheet: AAA H2O Bobcat 14:1 Outfit
Sales Sheet: Waterborne Coating Solutions

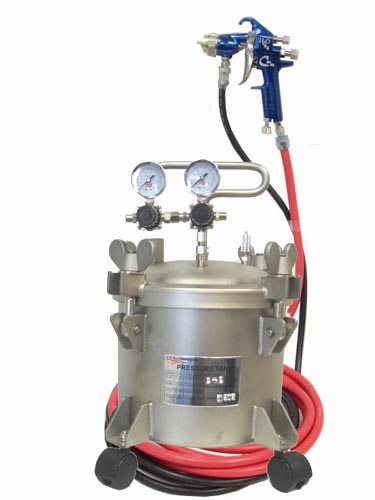

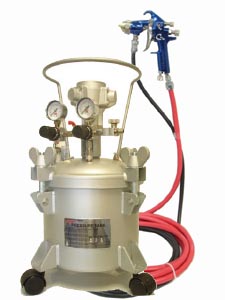

H2O CPR (CAT Pressure Reduced) - Pressure Feed

The CPR Pressure Feed Spray Gun can be fitted in an outfit with any of our Stainless Steel Pressure pots.

Stainless Steel Pressure Tanks:
51-802 - 2.5 Gallon
51-804 - 2.5 Gallon w/Air Agitation
51-852 - 5 Gallon
51-854 - 5 Gallon w/ Air Agitation
51-882 - 12.5 Gallon
51-884 - 12.5 Gallon w/ Air Agitation

Sales Sheet: Waterborne Coating Solutions

H2O CPR-G (CAT Pressure Reduced) - Gravity Feed

The CPR gravity feed spray guns can be ordered with the standard 1Qt. aluminum cup or the 1Qt.3M PPS disposable cup system.

H2O-CPR Gravity CAT Packs
H2O-CPR-G - 1 QT Aluminum Cup CAT Pack
H2O-CPR-G-PPS - 3M™ PPS™ 1 QT Cup CAT Pack
Only available in a CAT Pack

Sales Sheet: Waterborne Coating Solutions

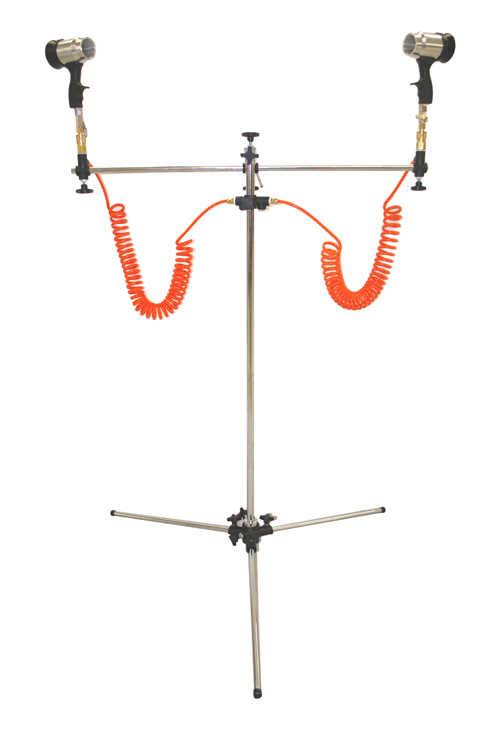

H2O Air Blast Quick Dryer

H20 Air Blast Quick Dryer: Speeds drying time of water-borne coatings while reducing micro bubbles.

54-540 Outfit:
Includes 2 air blast guns, adjustable stand(height to 84", width to 34") Variable air flow control with low CFM consumption (11.5 @ 50 psi) and high CFM output.

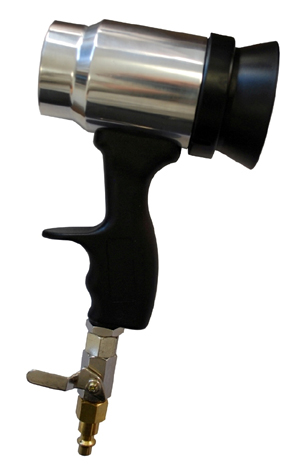

54-541:
Gun only. Air blast guns can be hand held or mounted on stand.

Sales Sheet: Waterborne Coating Solutions
