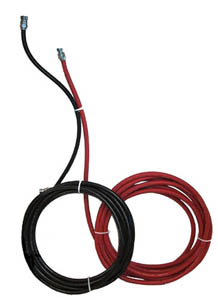

Air and Fluid Hoses

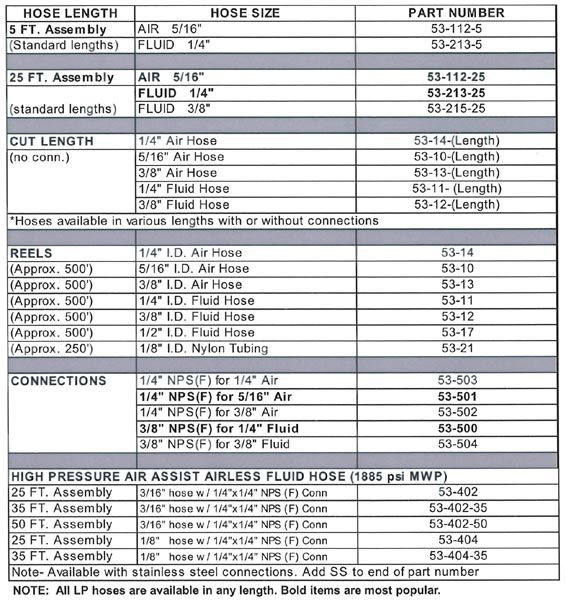

C.A.T. Pressure Hose Charts
Air Hose Specifications (Low Pressure):
- Temperature Range is -20°F to 190°F
- Textile Reinforced
- Smooth Red Synthetic Rubber Casing
- Oil Resistant
- 200 psi Working Pressure
Fluid Hose Specifications (Low Pressure):
- Temperature Range is 0°F to 190°F
- Tube: Nylon 11 (Silicone-Free)
- Braided High Strength Synthetic Yarn
- Cover: Smooth Black Synthetic Rubber Casing (RMA B ORS)
- Oil Resistant
- 750 psi Working Pressure
NOTE: All low pressure hoses are available in any length. Bold items are most popular.
| Low Pressure Hose Assemblies | ||
| Hose Length | Hose Size (I.D.) | Part Number |
| 5 FT. Assembly | Air 5/16" | 53-112-5 |
| Fluid 1/4" | 53-213-5 | |
| 25 Ft. Assembly | Air 5/16" | 53-112-25 |
| Fluid 1/4" | 53-213-25 | |
| Fluid 3/8" | 53-215-25 |
| Low Pressure Hoses (Without Connections) | ||
| Hose Length | Hose Size (I.D.) | Part Number |
| Cut Length | 1/4" Air Hose | 53-14-(Length) |
| 5/16" Air Hose | 53-10-(Length) | |
| 3/8" Air Hose | 53-13-(Length) | |
| 1/4" Fluid Hose | 53-11-(Length) | |
| 3/8" Fluid Hose | 53-12-(Length) | |
| *Hoses available in various lengths with or without connections | ||
| Hose Reels | ||
| Approximate Hose Length | Hose Size (I.D.) | Part Number |
| 500' | 1/4" Air Hose | 53-14 |
| 5/16" Air Hose | 53-10 | |
| 3/8" Air Hose | 53-13 | |
| 1/4" Fluid Hose | 53-11 | |
| 3/8" Fluid Hose | 53-12 | |
| 1/2" Fluid Hose | 53-17 | |
| 250' | 1/8" Nylon Tubing | 53-21 |
| Hose Connections | ||
| Connection Type | Part Number | |
| Connections | 1/4" NPS(F) for 1/4" Air | 53-503 |
| 1/4" NPS(F) for 5/16" Air | 53-501 | |
| 1/4" NPS(F) for 3/8" Air | 53-502 | |
| 3/8" NPS(F) for 1/4" Fluid | 53-500 | |
| 3/8" NPS(F) for 3/8" Fluid | 53-504 |
| High Pressure Air Assist Airless Fluid Hose (1885 PSI MWP) | ||
| Hose Length | Hose Type | Part Number |
| 15 Ft. Assembly | 3/16" hose w/ 1/4" x 1/4" NPS(F) Connections (Blue Hose) | 53-402-15 |
| 1/8" hose w/ 1/4" x 1/4" NPS(F) Connections (Yellow Hose) | 53-404-15 | |
| 25 Ft. Assembly | 3/16" hose w/ 1/4" x 1/4" NPS(F) Connections (Blue Hose) | 53-402 |
| 1/8" hose w/ 1/4" x 1/4" NPS(F) Connections (Yellow Hose) | 53-404 | |
| 35 Ft. Assembly | 3/16" hose w/ 1/4" x 1/4" NPS(F) Connections (Blue Hose) | 53-402-35 |
| 1/8" hose w/ 1/4" x 1/4" NPS(F) Connections (Yellow Hose) | 53-404-35 | |
| 50 Ft. Assembly | 3/16" hose w/ 1/4" x 1/4" NPS(F) Connections (Blue Hose) | 53-402-50 |
| *Note - Available with stainless steel connections. Add SS to end of part number | ||
