Lynx 100C Conventional (General Purpose)

The Lynx 100C is a general purpose conventional air spray gun for spraying a wide range of coatings. Designed for production use, the L100C is perfect for all coatings from thin to thick. Can also be used with internal mix nozzles as well as carbide tipped fluid nozzles for abrasives. This gun features a self-adjusting needle and air valve packing, air adjusting valve and rugged construction. The Lynx gun comes standard with all stainless steel fluid passages.

Specifications:
Air Inlet - 1/4” NPS (m)
Fluid Inlet - 3/8 NPS (m)
Weight - 20 oz.
CFM is dependant on Air Cap

Part Sheet: Lynx 100C (L100C)
Sales Sheet: Lynx 100C (L100C)

---

---

Lynx 200C Conventional (High Heavy Solids Atomization)

The L200C is a general purpose conventional air spray gun for the corrosion control market. Designed for spraying in harsh environments, this gun has the break-up power to atomize heavy high solids coatings. Fluid nozzle orifice and fluid needle tip are available in Tungsten Carbide for maximum tip life. The two-piece fluid nozzle makes this a more affordable option.

Specifications:
Air Inlet - 1/4” NPS (m)
Fluid Inlet - 3/8 NPS (m)
Weight - 20 oz.
CFM is dependant on Air Cap

Part Sheet: Lynx 200C (L200C)
Sales Sheet: Lynx 200C (L200C)

---

---

Lynx 300C Conventional (Fine Finish)

The Lynx 300C is a fine finish conventional air spray gun for achieving the ultimate in fine atomization. Designed for production use, the L300C is perfect for wood, automotive or any fine finish application. This gun offers the user a self-adjusting needle and air valve packing, air adjusting valve, lightweight and rugged construction. The Lynx 300C gun comes standard with stainless steel fluid passages and incorporates our 12-point plenum design. This patented design delivers smaller and more uniform material particles providing an even, smooth finish. For conventional spray this gun cannot be beat.

Specifications:
Air Inlet - 1/4” NPS (m)
Fluid Inlet - 3/8 NPS (m)
Weight - 20 oz.
Requires 10.3 CFM @ 45 PSI
Available in a CAT Pack

Part Sheet: Lynx 300C (L300C)
Sales Sheet: Lynx 300C (L300C)

---

---

Lynx 100C (Multicolor)

The Lynx 100C is a standard conventional air spray gun set up for spraying architectural, multicolor and latex finishes. Fitted with an internal mix air cap, this gun sprays your desired finish with consistent results. This gun features a self-adjusting needle and air valve packing, air adjusting valve, lightweight and rugged construction. The Lynx gun comes standard with all stainless steel fluid passages.

Specifications:
Air Inlet - 1/4” NPS (m)
Fluid Inlet - 3/8 NPS (m)
Weight - 20 oz.
Requires 5.2 CFM

Part Sheet: Lynx 100C (L100C Multicolor)
Sales Sheet: Lynx 100C (L100C Multicolor)

---

---

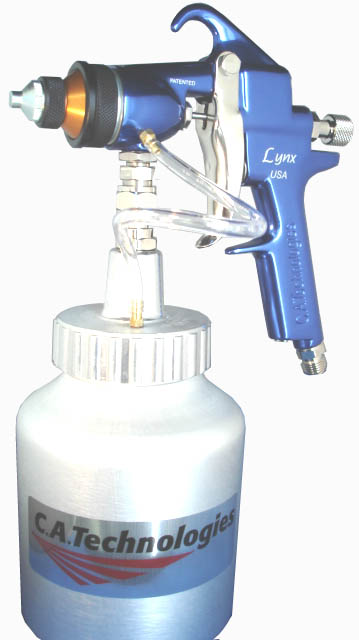

Lynx 100CM (Multicolor Touch-Up)

The Lynx 100CM is specifically designed for touch up of multicolor spatter finishes. It is a bleeder-style conventional Lynx gun (less air valve, air and fan control) with a 50 psi one-quart pressure cup, perfect for small jobs. The L100CM is an affordable option for dependable quality and performance. This gun can be converted into a production air spray gun by purchasing kit #10-400. The L100CM is designed for Zolotone and Multispec type coatings. It also features a self-adjusting needle packing, and comes standard with all stainless steel fluid passages.

Specifications:
Air Inlet - 1/4” NPS (m)
Fluid Inlet - 3/8 NPS (m)
Weight - 20 oz.
CFM is dependant on Air Cap

Part Sheet: Lynx 100CM (L100CM)
Sales Sheet: Lynx 100CM (L100CM)

---

---

Lynx 100CVT (Abrasives)

The Lynx 100CVT is a standard conventional air spray gun for spraying abrasive materials, porcelains and ceramics. The fluid nozzle orifice and fluid needle tip are fabricated from Tungsten Carbide for maximum tip life. The two-piece fluid nozzle makes this a more affordable option.

Specifications:
Air Inlet - 1/4” NPS (m)
Fluid Inlet - 3/8 NPS (m)
Weight - 20 oz.
CFM is dependant on Air Cap

Part Sheet: Lynx 100CVT (L100CVT)
Sales Sheet: Lynx 100CVT (L100CVT)

---

---

Lynx 100C X 1590 (Waterborne)

The Lynx 100C setup with the 1590 is designed for waterborne glue/adhesives applications. The special air cap and fluid nozzle for this model are designed to prevent product shearing. This gun features a self-adjusting needle and air valve packing, air adjusting valve, lightweight and rugged construction. The Lynx gun comes standard with all stainless steel fluid passages.

Specifications:
Air Inlet - 1/4” NPS (m)
Fluid Inlet - 3/8 NPS (m)
Weight - 20 oz.
Requires 12.5 CFM

Part Sheet: Lynx 100C x 1590 (L100Cx1590)
Sales Sheet: Lynx 100C x 1590 (L100Cx1590)

---

---

Tomcat 100C (General Purpose)

The T100C is an economical general purpose conventional air spray gun for spraying a wide range of coatings. Designed for production use, the Tomcat is perfect for all coatings from thin to thick, stains to glue. Can also be used with internal mix nozzles as well as carbide tipped fluid nozzles for abrasives. This gun features a self- adjusting needle packing, inexpensive nozzle replacement and rugged construction.

Specifications:
Air Inlet - 1/4” NPS (m)
Fluid Inlet - 3/8 NPS (m)
Weight - 19 oz.
CFM is dependant on Air Cap

Part Sheet: Tomcat 100C (T100C)
Sales Sheet: Tomcat 100C (T100C)

---

---

Tomahawk (General Purpose)

The Tomahawk is a lightweight ergonomically designed,price competitive, high quality production sprayer. It is designed for the painter who wants a conventional gun for spraying a wide range of coatings from glue to fine finish...the Tomahawk can handle it all.

Specifications:
Air Inlet - 1/4” NPS (m)
Fluid Inlet - 3/8 NPS (m)
Weight - 15 oz.
CFM is dependant on Air Cap

Part Sheet: Tomahawk 100C (TG)
Sales Sheet: Tomahawk 100C (TG)

---

---

Jaguar 100C (Gelcoat)

The J100C is a general purpose conventional air spray gun for spraying thick coatings like Gelcoat. The Jaguar Gravity has excellent break-up power to atomize the toughest coatings and comes standard with all stainless steel fluid passages.

Specifications:
Air Inlet - 1/4” NPS (m)
Fluid Inlet - 16mm x 1.5mm (m)
Weight - 20 oz.
CFM is dependant on Air Cap

Part Sheet: Jaguar 100C (J100C)
Sales Sheet: Jaguar 100C (J100C)

---

---

Jaguar 100CVT (Abrasives)

The Jaguar 100CVT is a standard conventional air spray gun for spraying abrasive materials, porcelains and ceramics. The fluid nozzle orifice and fluid needle tip are fabricated from Tungsten Carbide for maximum tip life. The two-piece fluid nozzle makes this a more affordable option.

Specifications:
Air Inlet - 1/4” NPS (m)
Fluid Inlet - 16mm x 1.5mm (m)
Weight - 20 oz.
CFM is dependant on Air Cap

Part Sheet: Jaguar 100CVT (J100C)
Sales Sheet: Jaguar 100CVT (J100CVT)

---

---

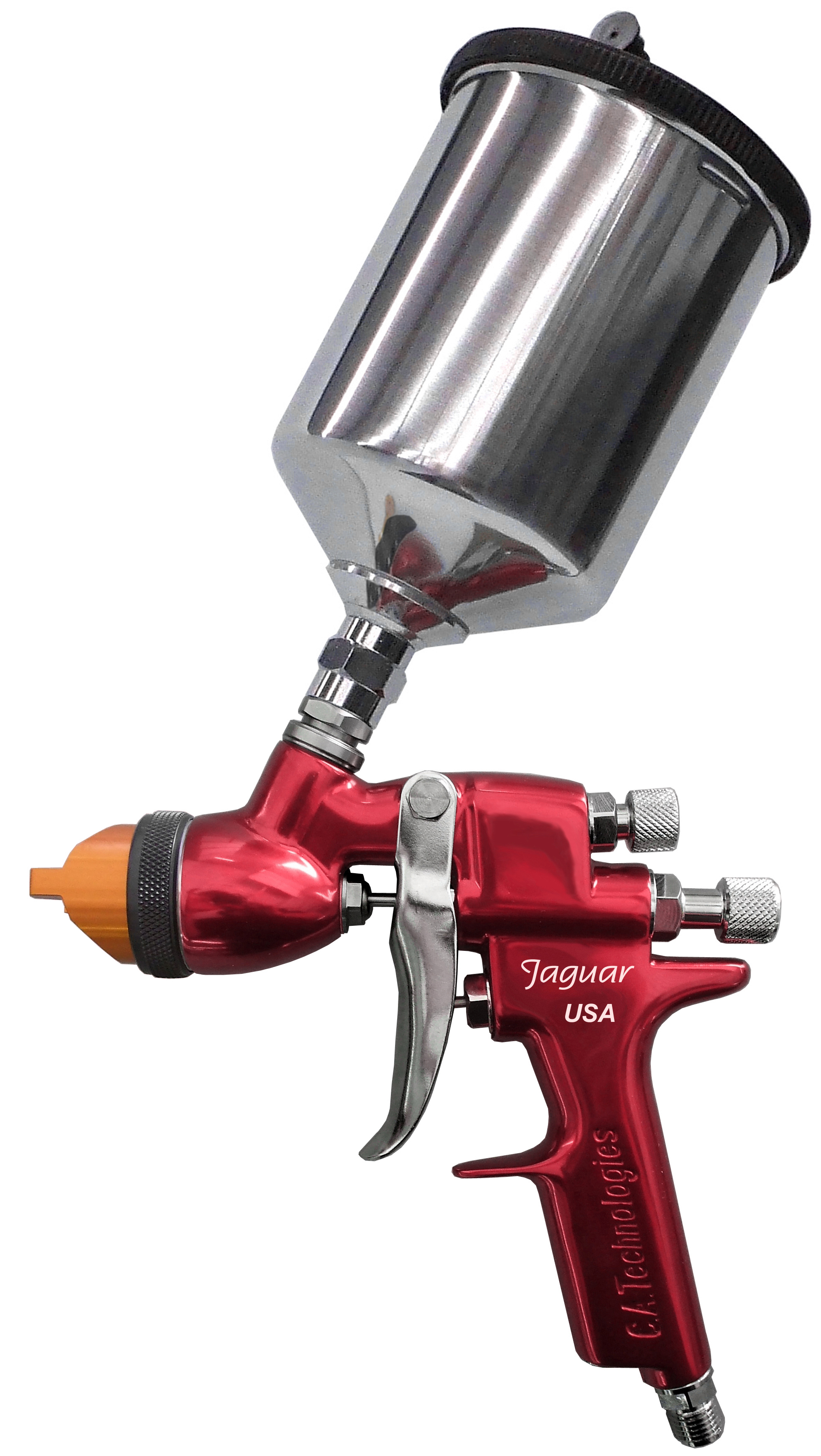

Jaguar 300C (Fine Finish)

The J300C is a conventional air spray gun for spraying fine finish coatings. This gun has excellent break-up power to achieve the ultimate in atomization. Perfect for wood and automotive markets.

Specifications:
Air Inlet - 1/4” NPS (m)
Fluid Inlet - 16mm x 1.5mm (m)
Weight - 20 oz.
Requires 10.3 CFM @ 45 PSI
Available in a CAT Pack or E-Pack

Part Sheet: Jaguar 300C (J300C)
Sales Sheet: Jaguar 300C (J300C)

---

---

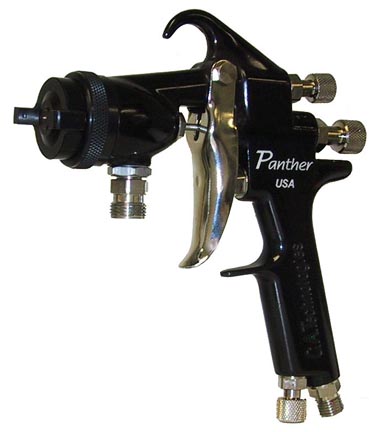

Panther 100G (Glue) - The Laminator - Teflon Hard Coated

The P100G is a general purpose conventional air spray gun designed for glue/adhesive applications of all types. The air caps are available in a PTFE anodized for easy clean-up and longer life. Guns feature self-adjusting needle packings, inexpensive nozzle replacement and rugged construction.

Specifications:
Air Inlet - 1/4” NPS (m)
Fluid Inlet - 3/8 NPS (m)
Weight - 20 oz.
Teflon hard coated body
CFM is dependant on Air Cap

Part Sheet: Panther 100G (P100G)
Sales Sheet: Panther 100G (P100G)

---

---

Panther 100G X 1590 (Waterborne) - Teflon Hard Coated

The Panther 100G setup with the 1590 is designed for waterborne glue/adhesives applications. The special air cap and fluid nozzle for this model are designed to prevent product shearing. This gun features a self-adjusting needle and air valve packing, air adjusting valve, lightweight and rugged construction. The Panther gun comes standard with all stainless steel fluid passages for a longer life and extended use.

Specifications:
Air Inlet - 1/4” NPS (m)
Fluid Inlet - 3/8 NPS (m)
Weight - 20 oz.
Teflon hard coated body
Requires 12.5 CFM

Part Sheet: Panther 100G x 1590 (P100Gx1590)
Sales Sheet: Panther 100G x 1590 (P100Gx1590)

---

---

Panther 200Z (Zinc Rich) - Teflon Hard Coated

The P200Z is a rugged, general purpose, conventional air spray gun designed for spraying zinc-rich coatings. Our P200Z has a Delrin tipped fluid nozzle to prevent plating and a unique leather / Teflon packing arrangement that increases your spraying time before the gun needs to be cleaned. The air caps are offered in a PTFE anodized to aid in clean-up and extend the life of the gun. This gun comes standard with air-adjusting valve, stainless steel fluid passages and heavy-duty needle return spring.

Specifications:
Air Inlet - 1/4” NPS (m)
Fluid Inlet - 3/8 NPS (m)
Weight - 20 oz.
Teflon hard coated body
CFM is dependant on Air Cap
Available in a Smart Pack

Part Sheet: Panther 200Z (P200Z)
Sales Sheet: Panther 200Z (P200Z)

---

---

Panther 200C (Corrosion Control) - Teflon Hard Coated

The P200C is a general purpose conventional air spray gun for the corrosion control market. Designed for spraying in harsh environments, this gun has the break-up power to atomize heavy high solids coatings.

Specifications:
Air Inlet - 1/4” NPS (m)
Fluid Inlet - 3/8 NPS (m)
Weight - 20 oz.
Teflon hard coated body
CFM is dependant on Air Cap

Part Sheet: Panther 200C (P200C)
Sales Sheet: Panther 200C (P200C)

---

---
